PORTABLE NETFUEL METERING STATION

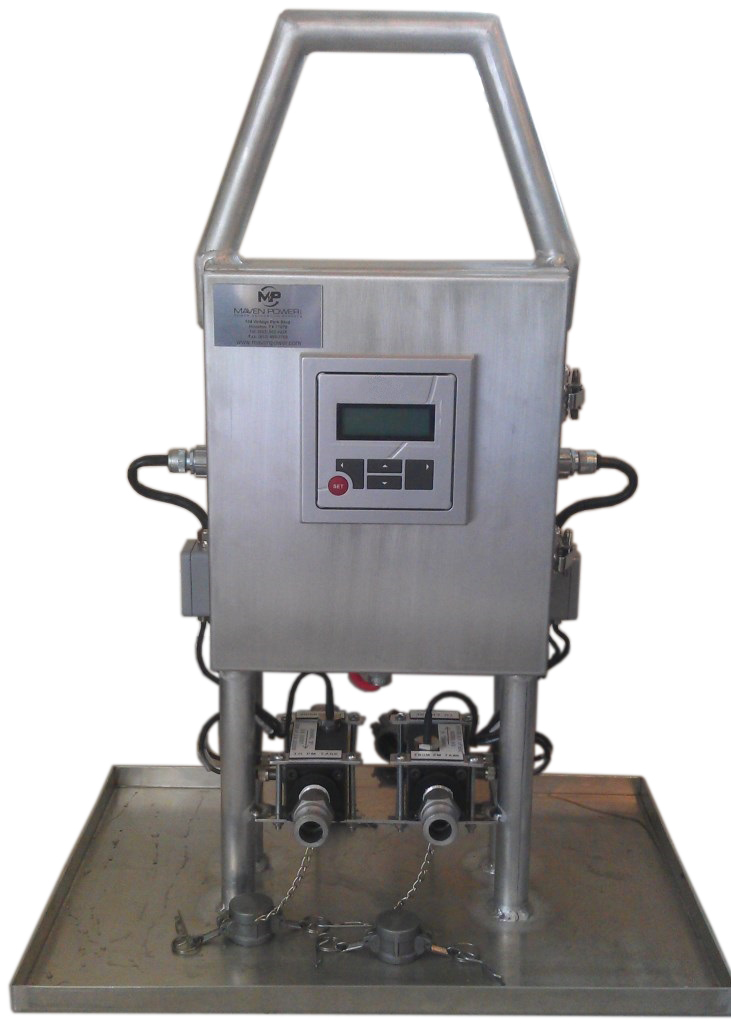

Maven Power introduces the NetFuel Metering Station for diesel or fuel oil gensets: a turn-key net fuel metering solution for liquid fueled gensets having an on-board or nearby fuel day tank. The metering station includes two helical positive displacement flow meters and directly displays net fuel consumption of the generator by simultaneously measuring supply fuel to the engine and return fuel to the day tank.

Designed for outdoor use anywhere in the world, with its small size, light weight, and quick coupling connections, the metering module is portable and allows for performance testing of a single generator unit or a large number of units in a short period of time. The unit is purpose-built to allow for high accuracy determination of fuel consumption and subsequently, plant heat rate for gensets up to 5MWe. Additional specifications include:

  • Lightweight, corrosion resistant aluminum construction (32 lb.)
  • Small footprint (24 x 18 in)
  • Installs in minutes
  • Temperature corrected measurement (critical for high temperature return fuel)
  • High Accuracy: 0.1% of rate
  • Flow Range: 0.08 to 12.0 gpm
  • Viscosity: 1 to 1,000,000 cSt
  • Pressure: up to 600 psig
  • Temperature: -4.0 to 257.0 deg F
  • Quick coupling connections (3/4") with sealing caps when not in use. Other connection types also available.
  • Integral support base and drip pan to prevent spills
  • Power Supply: 120/230VAC (50/60Hz) or 24VDC
  • 25 ft integral power cord to allow direct plug in at genset's auxiliary power supply

The metering module includes analog or pulse outputs for easy integration into customer SCADA or power management systems if required.

In addition, Maven Power configures and programs the controller/display specific to each customer's application (including four different languages), such that the module arrives at the client site turnkey ready.

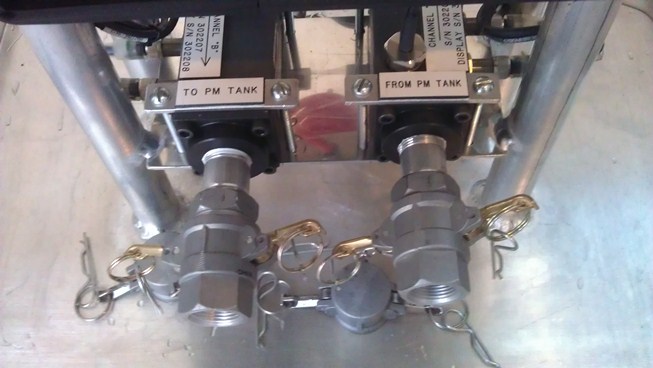

Quick Coupling Fuel Connections

For more detailed information on NetFuel, click here.

Ordering Information: Complete this quote request, or for additional information on the Net Fuel Metering Module, contact us at +1 (832) 552-9225.
